WHY MS PRINTING SOLUTIONS

RELIABILITY IS THE RESULT OF MORE THAN 20 YEARS’ WORK IN DIGITAL PRINTING
Quality and reliability are a matter of details. We work hard day-by-day going deep into each process step to maintain our high-standard reliability criteria.

INNOVATION IS THE STARTING POINT
Only staying always one step ahead, we can drive the tech change. We have done this with LaRIO single pass; we will do it again finding today the innovative solutions to meet tomorrow’s demands.

CUSTOMER LISTENING SECURES OUR LONG-TERM SUCCESS
Fast and high-profile service creates an ongoing dialogue with our customers, and this is a key success factor.

SHARING KNOWLEDGE
Our Lario Academy is a place where performance-driven people can reach the best results.

SUSTAINABILITY IS OUR DUTY
Develop sustainable technologies is our responsibility towards future generations. To move on from words to facts we have created #transparentaswater project.

Quality and reliability are a matter of details
Same Print Result (SPR) concept is at the core of our conviction and characterizes the entire range of MS products. For us it would be inconceivable to approach a new digital industrial printing technology without being able to multiply the productions in the future.
But it would be even more inconceivable to multiply the productions having to change the existing color-charts, without get the same chromatic printing results due to the use of different printing.
SPR means being able to choose any MS machine with the confidence that it can reproduce the same coloristic results, using the same printing conditions.

SUSTAINABLE TECHNOLOGY
Developing sustainable technologies is our responsibility towards future generations. Thus, we have adhered to the “Sustainable Technologies” project sponsored by ACIMIT; its aim is to promote printing equipment which make smart use of: energy, chemicals and water resources. Project members undertake to: sign the project regulation; undergo the screening tests led by an authority for achieving the Green Label; apply “Supplier of Sustainable Technologies” logo to all the machines which have been awarded a Green Label.

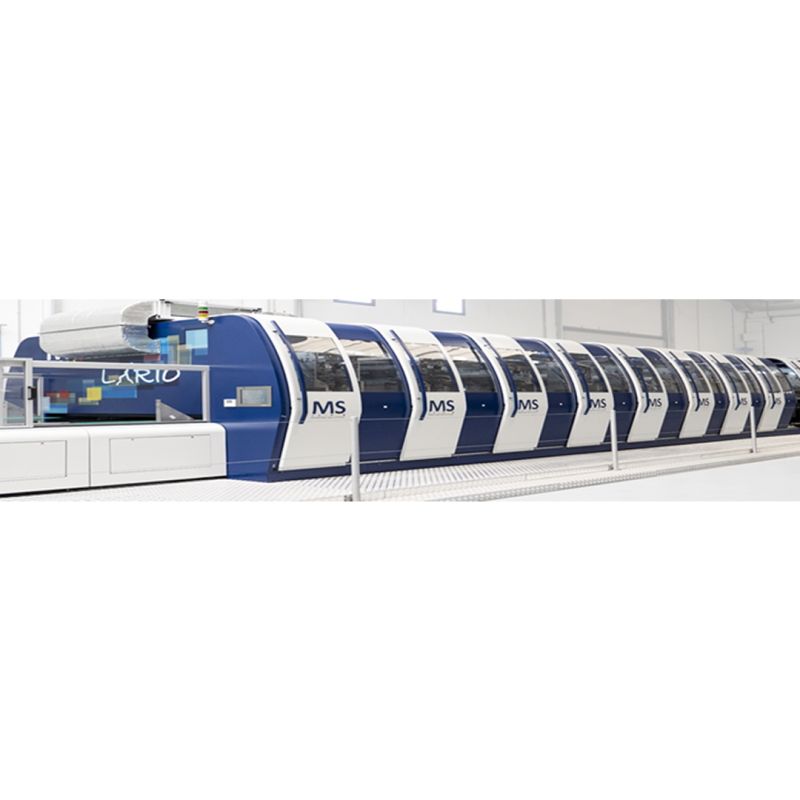

MS – LARIO (Single Pass)

PRINTING TECHNOLOGY Single Pass
PRINTING WIDTH 1800 – 3200
MAX NR° OF COLORS up to 12
NR° OF PRINT HEADS according to configuration
MAX SPEED 75 m/min
PRINTING RESOLUTION (DPI) 600×600
PRINT HEAD NATIVE RESOLUTION (DPI) 600
GRAY LEVELS 16
DROP SIZE from 4 to 72pl
INKS SYSTEM OPEN
SOFTWARE SYSTEM OPEN
HEAD CRASH PROTECTIVE SYSTEM ■
HEATED DRIVEN PRESSURE ROLL –
EMBEDDED WEB SERVER FOR COST REPORT ■
QWIZARD HARDWARE –
WI-FI REMOTE CONTROL ■
LOCAL PRINTING QUEUE MANAGEMENT SYSTEM ■
ACIMIT GREEN LABEL ■
PRINT HEAD PROGRAM ■

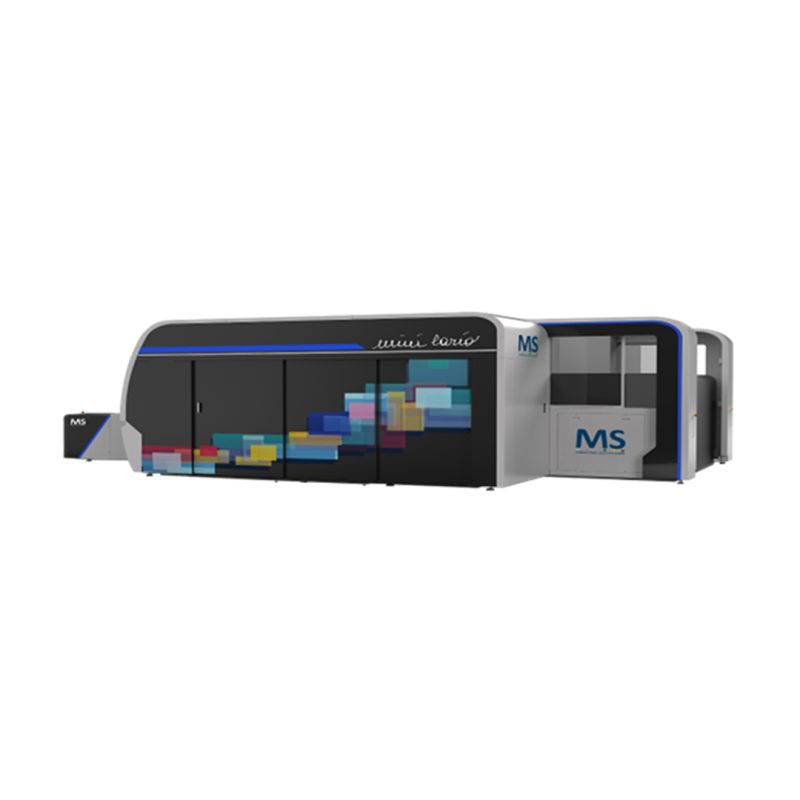

MS – Mini Lario

TECNICHAL SPECIFICATIONS
PRINTING TECHNOLOGY Scanning
PRINTING WIDTH 1800 – 3200
MAX NR° OF COLORS up to 8
NR° OF PRINT HEADS 64
MAX SPEED: 8 COLORS 935 m/h
MAX SPEED: 2XCMYK 1090 m/h
PRINTING RESOLUTION (DPI) 600 x 600
PRINT HEAD NATIVE RESOLUTION (DPI) 600
GRAY LEVELS 16
DROP SIZE from 4 to 72pl
INKS SYSTEM OPEN
SOFTWARE SYSTEM OPEN
HEAD CRASH PROTECTIVE SYSTEM ■
HEATED DRIVEN PRESSURE ROLL ■
EMBEDDED WEB SERVER FOR COST REPORT ■
QWIZARD HARDWARE ■
WI-FI REMOTE CONTROL –
LOCAL PRINTING QUEUE MANAGEMENT SYSTEM ■
ACIMIT GREEN LABEL ■
PRINT HEAD PROGRAM ■
